UNLIMITED TONE. FOR REAL.
AI Machine Modeled tones live on stage
- AI Machine Modeling pedal brings your TONEX Tone Models live on stage
- Perform with sounds indistinguishable from the real gear, no computer required
- Play through hundreds of amps, cabs, pedals and full rigs, including 1100 downloadable premium Tone Models and unlimited user downloads
- Doubles as a high-quality USB audio interface
- Ultra-low noise 24-bit, 192 kHz converters, 5 Hz–24 kHz frequency response and 123 dB dynamic range offers incredible sound quality
- Exclusive VIR™ multi-IR cabinets and custom IR Loader
- Noise gate, EQ, compressor, 2 delays, 5 modulation FX, 6 stereo reverbs for a powerful all-in-one solution
- Full MIDI control and expression pedal input integrate into any rig
- Includes TONEX MAX software all-in-one player, modeler and librarian and AmpliTube 5 software
- Chromatic tuner with selectable reference frequency and three operating modes

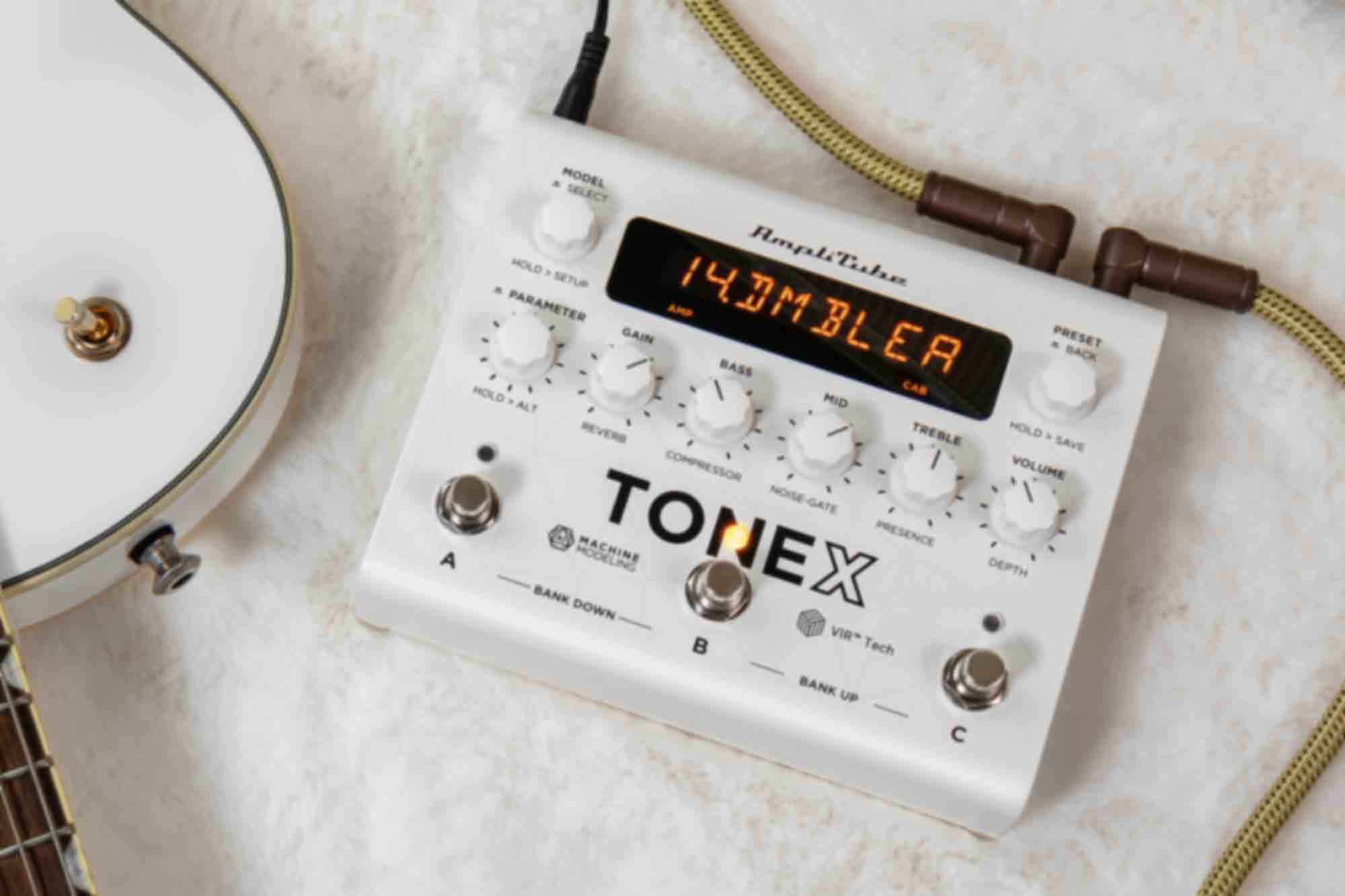

TONEX Pedal Anniversary Limited Edition
IK announces a collector’s-grade, limited edition TONEX Pedal. Handmade in Italy in a custom white finish, the pedal is pre-loaded with 150 Premium Tone Models of the best vintage and modern tones. Created by select Tone Partners, including The Studio Rats, Amalgam Audio, Worship Tutorials, Tone Junkie, and Jason Sadites, this TONEX Pedal offers a unique palette of sounds curated exclusively for the TONEX anniversary.
Download the Premium Tone Models list
New TONEX FX
A free update for all TONEX users. It includes 8 new FX, including 2 delays, chorus, flanger, tremolo, phaser, rotary and new spring reverb. Two new FX blocks can be configured pre- or post-amp and cab for maximum customization. Included in this update is an improved Noise Gate for more accuracy, with a pre/post option, delivering ultra-tight gating for modern guitar styles. The 8 FX are compatible with TONEX Mac/PC, TONEX Pedal, and TONEX ONE.
Listen to audio demos
7 Slots with 15 FX
- Modulation: Chorus, Tremolo, Phaser, Flanger, Rotary
- Delay: Digital, Tape
- Reverb: Spring 1, Spring 2, Spring 3, Spring 4, Room, Plate
- Compressor
- Noise Gate
- Compatible with TONEX Mac/PC, TONEX Pedal, and TONEX ONE
Bring your Tone Models live on stage
TONEX Pedal lets you store and play your AI Machine Modeling Tone Models live on stage. Choose from thousands of the world’s most sought-after amps, cabs, and pedals – or your own gear, modeled in minutes – then gig with them right at your feet. You’ve never experienced this level of authenticity and realism in a pedal before.
From rare one-of-a-kind vintage amps to modern rigs, TONEX Pedal makes it affordable to own the most sought-after gear in the world.
Listen to audio demos
High-end design for pristine tone
With 24-bit, 192 kHz processing, massively wide 5 Hz–24 kHz response, and 123 dB of dynamic range, TONEX Pedal ensures your instrument’s tone is as good as you’ve ever heard it even before it hits TONEX’s incredible modeling.
MODEL Encoder
Press and turn to change the Tone Model of the current preset.
Press to select amp/pedal or cab options.
Hold to access preset and global settings.
DISPLAY
Highly visible display for any stage, featuring eight 16-segment characters.
This is your main reference when moving among Tone Models, presets, editing parameters and browsing inside menus.
SUB DISPLAY
The section uses colored text to show the type of Tone Model and cab you’re running.
PRESET Encoder
Turn the PRESET encoder to browse among the 150 presets available in the pedal.
Hold to save a preset and choose its name and bank position.
PARAMETER Encoder
Each preset in TONEX Pedal has its own parameter set.
Push the PARAMETER encoder to access the sub-parameters of the selected preset.
Hold the PARAMETER encoder to access alternative controls for the 5 main knobs.
MAIN Parameter Knobs
Turn to edit the main or alternative parameters of the preset.
A, B, C FOOTSWITCHES
Press to activate or bypass a preset of the current bank.
Press A+B to select a lower down.
Press B+C to select a higher bank.
Press A+C to display the current bank.
INPUT
Plug your instrument here.
OUTPUTS L/R
Connect to an amplifier, stomp box, a PA system for live performance or your monitors when using TONEX Pedal as an audio interface.
Use the left output when running a mono setup.
HEADPHONES
Same as the L/R outputs. Plug your headphones here for silent monitoring.
MIDI In
Connect to external MIDI controllers to automatically change presets and parameters via control changes.
MIDI Out
Connect to external MIDI devices. Through this port TONEX Pedal can send out control changes anytime a switch is pressed or a knob is turned.
EXT. CONTROL
Hook up an external expression or single switch pedal to control any combination of parameters with a single action. Hook up a double switch pedal to easily move among banks or presets.
USB
Use this port to connect TONEX Pedal to your Mac/PC as an audio interface and for using the librarian in TONEX to organize and load presets.
POWER 9V DC
9V DC center negative 320 mA power socket.
A complete stage rig in one pedal
TONEX’s groundbreaking technology lets you model everything from a single pedal to a full-pedal, amp-and-cab rig. TONEX Pedal goes even further, giving you the tools you need to shape your sound live on stage.
- AMP / RIG: load up to 150 Tone Model presets to use any time. You can load any combination of pedal, amp and whole-rig models.
- VIR CABINET: use IK’s award-winning multiple impulse response VIR™ cabinet and mic simulation to dial in the perfect cab tone for any situation.
- IR LOADER: load any custom IR you like to explore combinations of Tone Models and your own impulse responses.
- EFFECTS / UTILITY: Noise gate, EQ, compressor, 2 delays, 5 modulation FX, 6 stereo reverbs for a powerful all-in-one solution.
It’s all the tone-shaping options you need in a single pedal. And you can save up to 150 presets, organized within 50 banks of 3 preset slots each, giving you endless tones from a single portable rig.
Tour-ready design and features
Designed and crafted in Italy, TONEX Pedal features a compact chassis made from anodized aluminum that can withstand years of tour abuse.
With full MIDI in/out, you can connect high-end FX pedals like our X-GEAR line for a complete programable pedalboard or easily add TONEX Pedal to your touring rack, and use its expression pedal input to add real-time control over any parameter.
A limitless collection of tones
TONEX is more than just a pedal, it’s an ecosystem of tone, with a full range of hardware, software and apps to transport your tones everywhere, seamlessly, from your DAW and plug-ins for studio production, to your mobile device for impromptu practicing. Access your favorite Tone Models not only from the TONEX Pedal, but also from the free TONEX software and free TONEX iOS app.
Best of all, TONEX Pedal includes 1100 Premium Tone Models plus unlimited access to free user Tone Models on ToneNET to load to the pedal for a limitless supply of sonic inspiration.
Full studio integration
TONEX Pedal tone experience goes beyond the stage. Use the included TONEX MAX software not only to model your rig, but also as a standalone or a plug-in integrated with your DAW or directly with AmpliTube 5 to enjoy the exact same tone you use live in your studio productions. And for maximum convenience, TONEX Pedal also includes a full version of AmpliTube 5 to integrate your Tone Models within the most powerful amp and effects software on the planet.
Plus TONEX Pedal also doubles as a 24 bit/44.1 kHz USB audio interface, so you don’t need any other gear to plug into your studio, choose your tone and rock out.
Easily prep for gigs

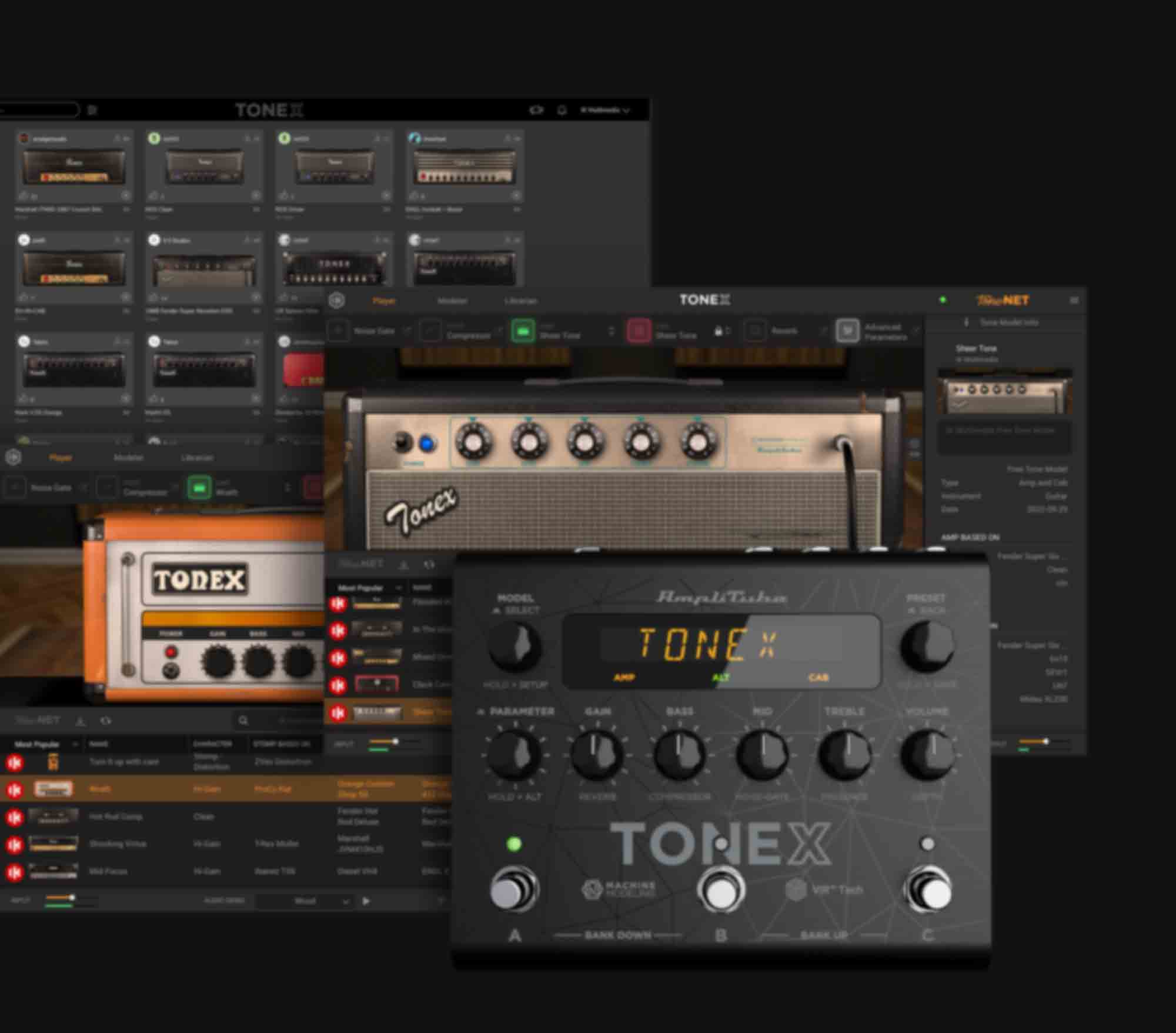

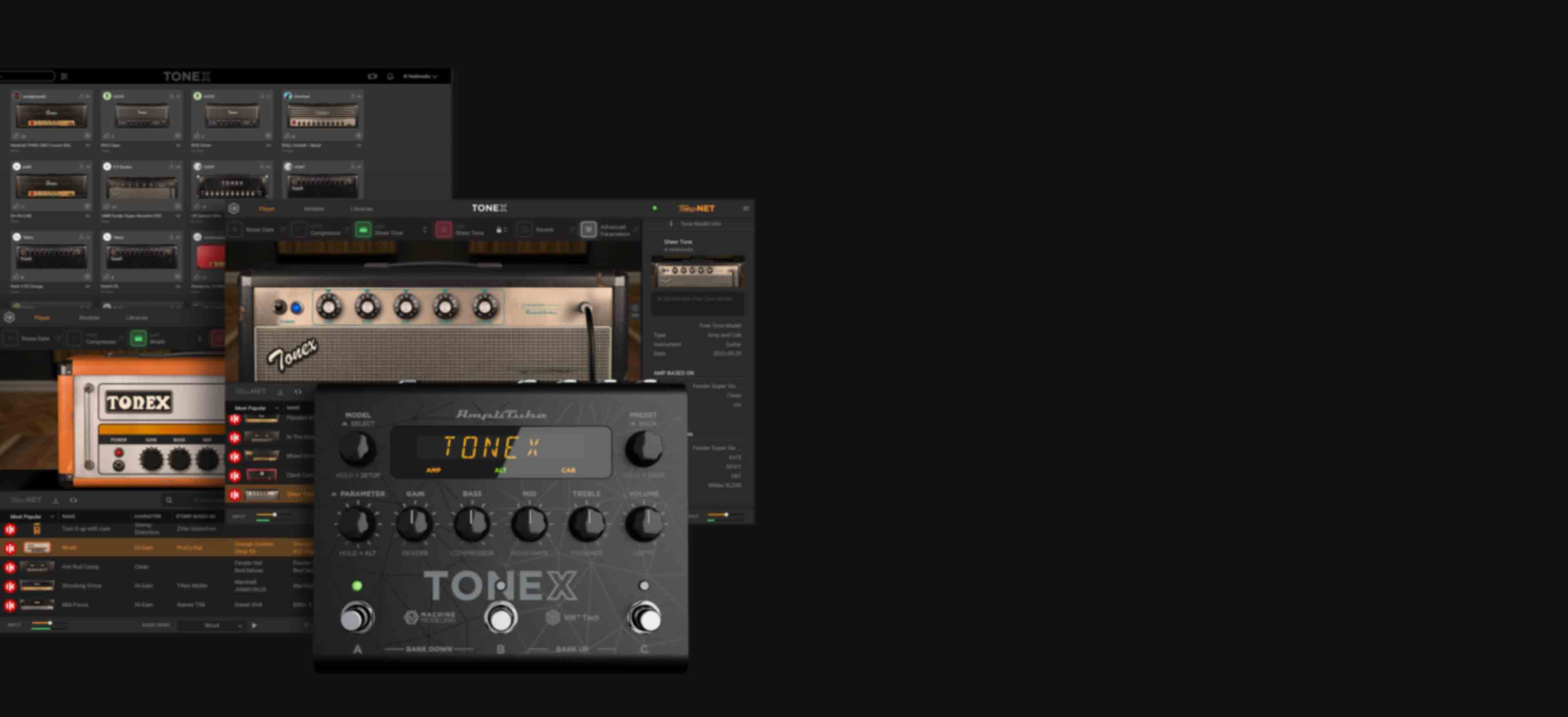

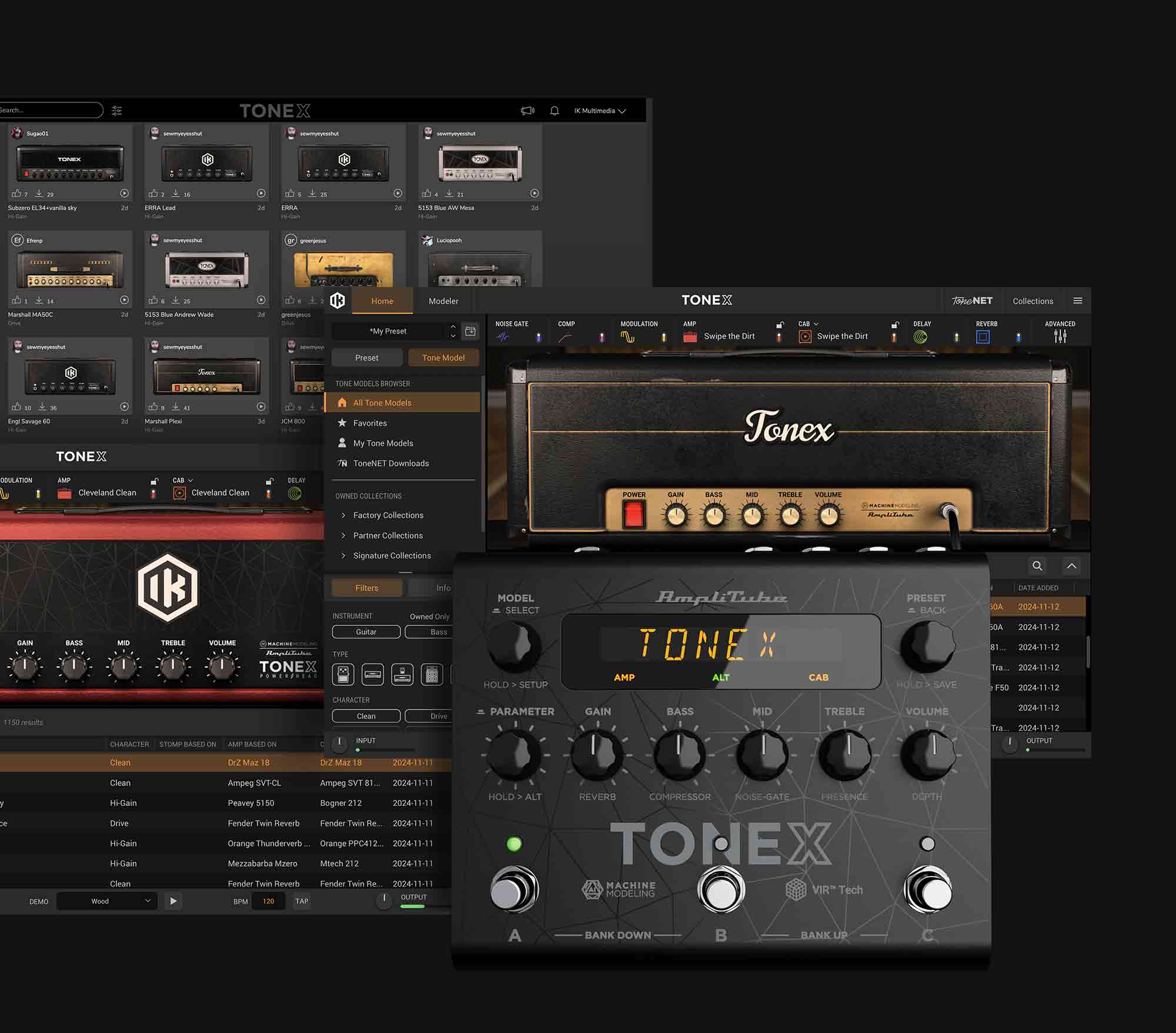

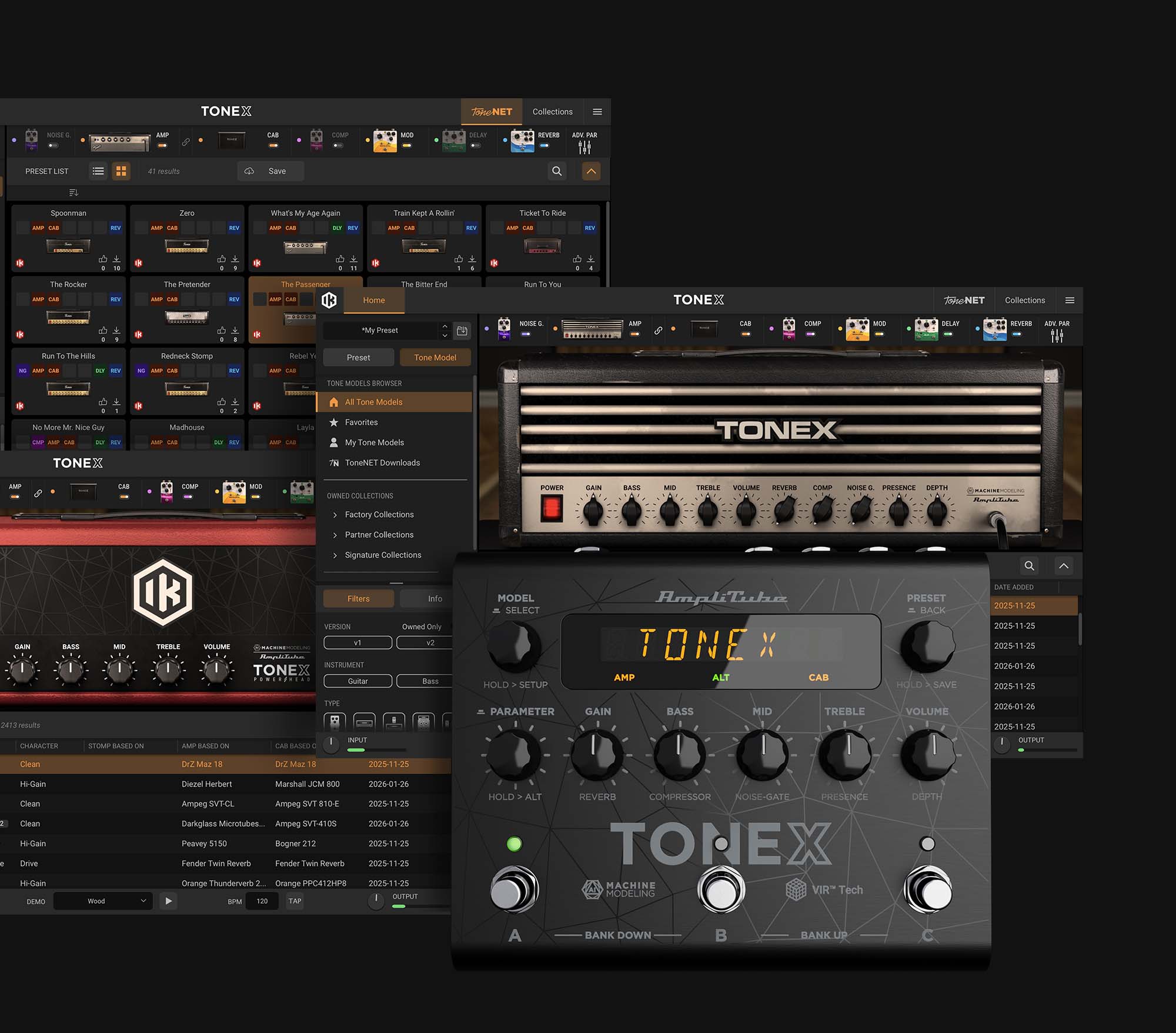

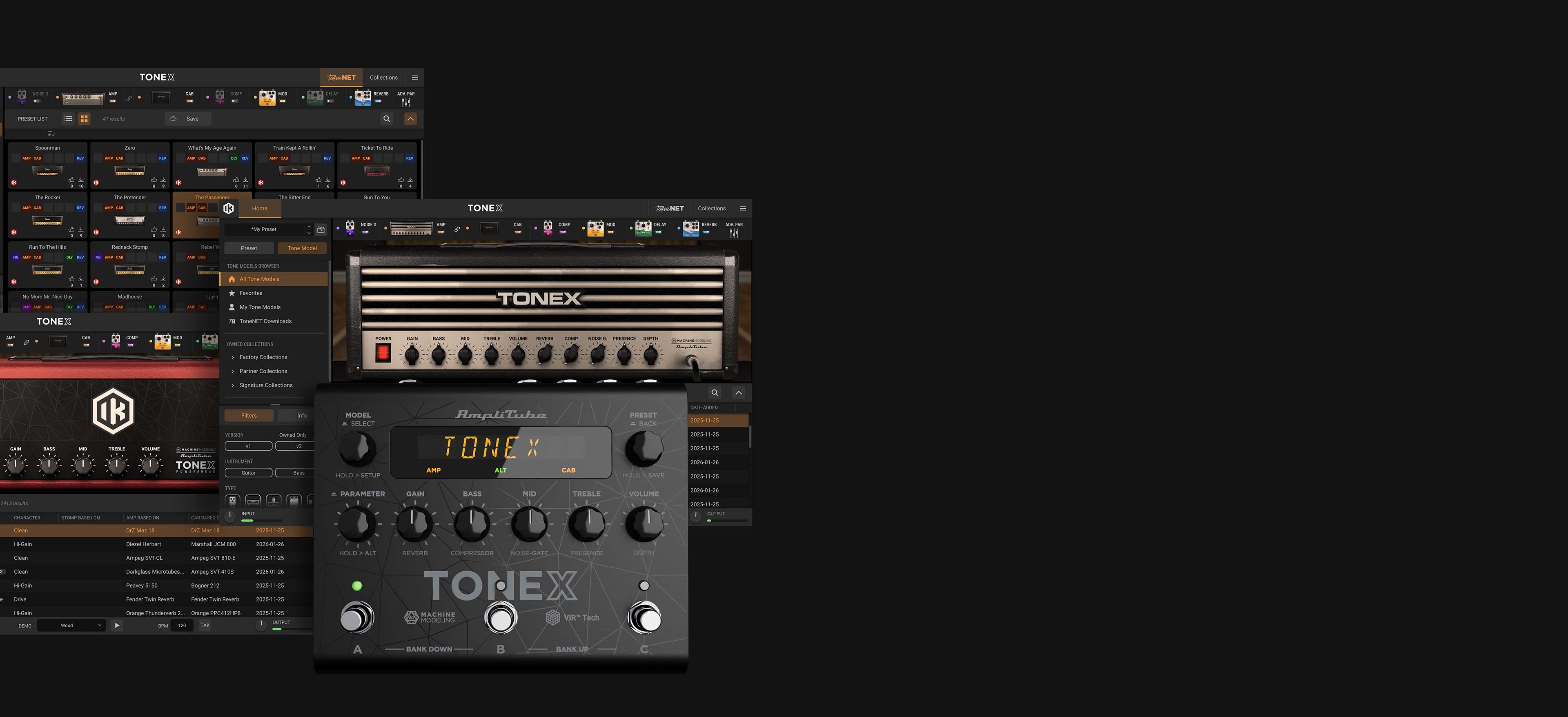

TONEX software includes a librarian letting you browse, arrange, edit and load your Tone Models and presets. With an easy drag & drop interface you can manage a massive collection of sounds in seconds.
- Advanced AI Machine Modeling™ technology for hyper realistic Tone Models
- Play models of amps, amps + cabs, combos or pedals like: distortion, overdrive, fuzz, boost and EQ
- Compact form factor that fits on any pedalboard
- 50 banks with 3 preset slots each for up to 150 customizable presets
- Practice in silence with your favorite tone using the headphone output
- Full MIDI implementation for control over advanced rigs
- Swap the cab with any third-party IRs or use the included advanced VIR™ cab technology with customizable microphone placement
- Noise gate, EQ, compressor, 2 delays, 5 modulation FX, 6 stereo reverbs for a powerful all-in-one solution
- Built-in USB port doubles an audio interface for recording and for preset management
- Includes TONEX MAX software all-in-one player, modeler and librarian and AmpliTube 5 software
- Plug-in for your favorite DAW - works as an AAX / VST / AU plug-in or in AmpliTube 5
- Access to ToneNET for sharing, downloading and trying thousands of premium and free Tone Models.
- Model your own rig (amp, cabinets, pedals) using the TONEX modeling software
- Stage-ready, high-visibility display, shows the preset name, bank number or parameter’s name and value.
- Sturdy anodized aluminum chassis designed and crafted in Italy
|
TONEX ONE X
|
TONEX PEDAL
|
| Price |
...
|
...
|
| Total Presets |
20 |
150 |
| Presets / bank |
2 Presets (A/B Mode)
1 Presets (Stomp Mode) |
50 Banks of 3 Presets |
| Bank Controls |
Mode Selection (A/B or Stomp) |
Bank up / down |
| Onboard IR |
VIR multi-IR cab emulation
Custom IR loader |
VIR multi-IR cab emulation
Custom IR loader |
| Controls |
Bass / Gate
Mid / Comp
Treble / Reverb
Vol / Gain
A/B or Bypass
|
Gain / Reverb
Bass / Comp
Mid / Gate
Treble / Presence
Volume / Depth
Preset Select
Model Select
Parameter / ALT
A / B / C - bypass
Bank up/down
|
| Effects |
Reverb
Compressor
Noise Gate
Bass / Mid / High EQ
Via TONEX Software:
5x Modulation
2x Delay
|
6x Stereo Reverb
Compressor
Noise Gate
Bass / Mid / High EQ
Presence
Depth
5x Modulation
2x Delay
|
| Outputs |
1 x 1/4" mono / stereo / headphone |
2 x 1/4" (L/mono, R)
1 x 1/4" headphone |
| MIDI I/O |
|
Yes |
| External Control |
|
Yes |
| Assignable Colors |
9 |
|
| Impulse Response |
VIR multi-IR Cabinets
Custom IR Loader |
VIR multi-IR Cabinets
Custom IR Loader |
| Premium Tone Models |
212 |
1100 |
| Pre-loaded Factory Presets |
Download list
|
Download list
|
| Included Software |
TONEX SE
AmpliTube 5 SE |
TONEX MAX
AmpliTube 5 |
| Audio Interface |
24-bit/44.1 kHz |
24-bit/44.1 kHz |
| Connection type |
USB-C |
USB-B |
| Size & Weight |
48 mm / 1.89″ W
94 mm / 3.7″ D
53 mm / 2.09″ H
160 g / 0.35 lbs |
176 mm / 6.92″ W
142 mm / 5.59″ D
55 mm / 2.16″ H
906 g / 1.98 lbs |
| Power Source |
9V DC, 120 mA (not included) or via USB-C |
9V DC, 320 mA (included) |
