UNLIMITED TONE. FOR REAL.

AI Machine Modeled tones live on stage

  • AI Machine Modeling pedal brings your TONEX Tone Models live on stage
  • Perform with sounds indistinguishable from the real gear, no computer required
  • Play through hundreds of amps, cabs, pedals and full rigs, including 1100 downloadable premium Tone Models and unlimited user downloads
  • Doubles as a high-quality USB audio interface
  • Ultra-low noise 24-bit, 192 kHz converters, 5 Hz–24 kHz frequency response and 123 dB dynamic range offers incredible sound quality
  • Exclusive VIR™ multi-IR cabinets and custom IR Loader, Noise gate, EQ, compressor and 5 stereo reverbs for powerful on-stage tone shaping
  • Full MIDI control and expression pedal input integrate into any rig
  • Includes TONEX MAX software all-in-one player, modeler and librarian and AmpliTube 5 software
  • New Chromatic tuner with selectable reference frequency and three operating modes

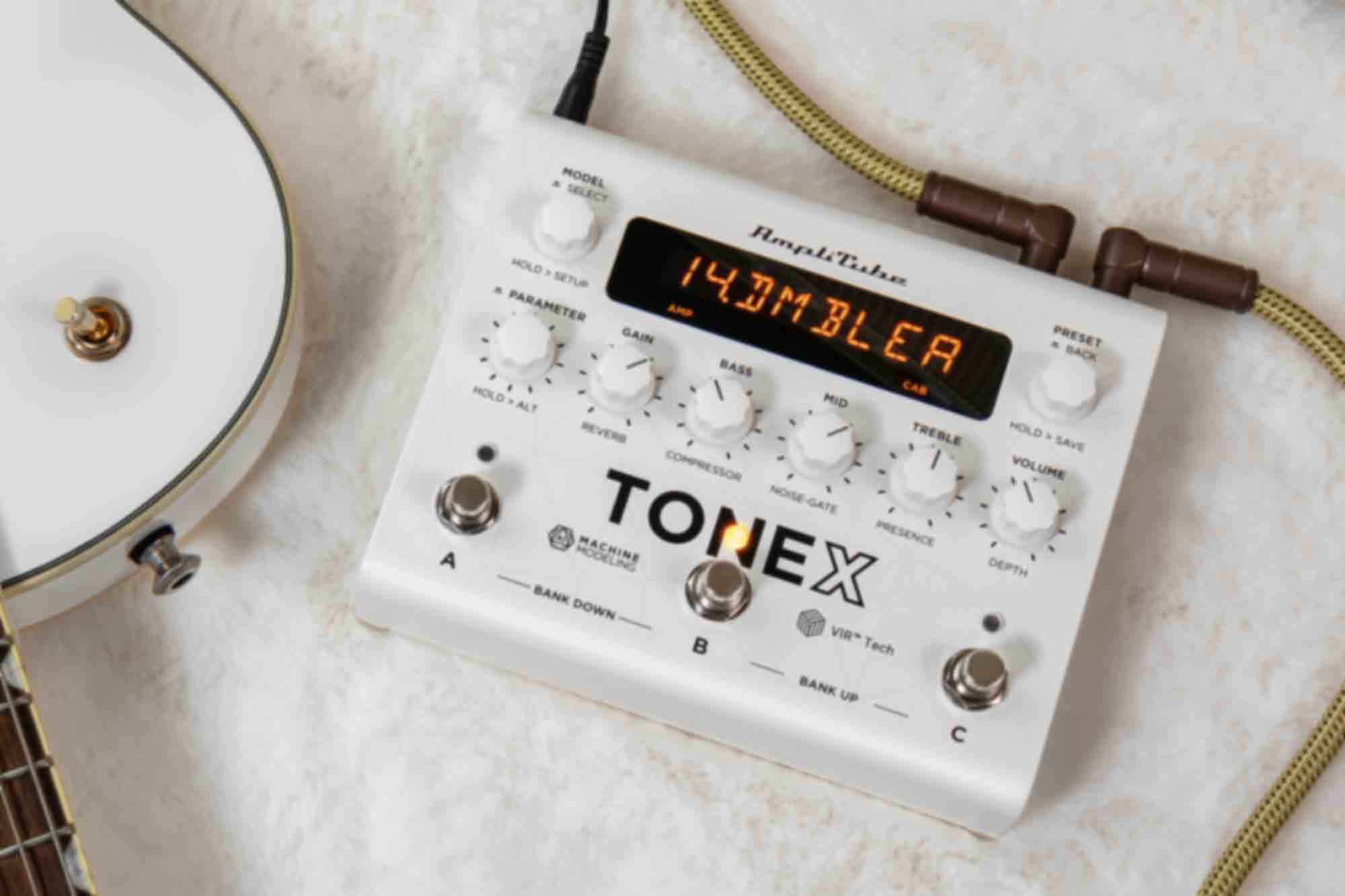

TONEX Pedal Anniversary Limited Edition

IK announces a collector’s-grade, limited edition TONEX Pedal. Handmade in Italy in a custom white finish, the pedal is pre-loaded with 150 Premium Tone Models of the best vintage and modern tones. Created by select Tone Partners, including The Studio Rats, Amalgam Audio, Worship Tutorials, Tone Junkie, and Jason Sadites, this TONEX Pedal offers a unique palette of sounds curated exclusively for the TONEX anniversary.

Download the Premium Tone Models list

Tone Partner Logos
TONEX Pedal Anniversary Limited Edition
Awards

New TONEX FX

Coming Soon

A free update is coming soon for all TONEX users. It includes 8 new FX, including 2 delays, chorus, flanger, tremolo, phaser, rotary and new spring reverb. Two new FX blocks can be configured pre- or post-amp and cab for maximum customization. The 8 FX are compatible with TONEX Mac/PC, TONEX Pedal, and TONEX ONE. The software and firmware updates will ship in November 2024.

Listen to audio demos

0:00
0:00
TONEX FX GUI

7 Slots with 15 FX

  • Modulation: Chorus, Tremolo, Phaser, Flanger, Rotary
  • Delay: Digital, Tape
  • Reverb: Spring 1, Spring 2, Spring 3, Spring 4, Room, Plate
  • Compressor
  • Noise Gate
  • Compatible with TONEX Mac/PC, TONEX Pedal, and TONEX ONE
TONEX FX GUI

What’s New in TONEX for Mac/PC version 1.7.4

TONEX for Mac/PC 1.7.4 is designed to make your workflow effortless and more flexible. Added features include a new Global Setup for TONEX ONE, support for 2 microphones using 2-input interfaces, and workflow enhancements to the player section. The update is free for all TONEX users, including CS, via the IK Product Manager.

  • New dialog with more options for deleting a Tone Model in a user folder.
  • New preset name “Edit” button is accessible when hovering over the list or card.
  • Added new sorting options by Amp Name and by Stomp Name in ToneNET.
  • The Modeler now supports a 2-microphone modeling setup using interfaces with 2 inputs, including AXE I/O.
  • Added options to resize and hide/show columns in the Librarian.
  • New Global Setup panel for TONEX ONE now accessible from the hardware top bar of the Librarian.

What’s new in TONEX Pedal

TONEX Pedal adds a built-in chromatic tuner for guitar and bass. The new tuner inside TONEX Pedal can replace any tuner you currently use with its easy-to-read display, selectable reference frequency and three operating modes: Mute, Thru, and Off.

  • Chromatic tuner for guitar and bass
  • Easy to read display for seamless tuning on stage
  • 3 tuning modes: Mute, Thru, and Off
  • Selectable reference frequency from 415 Hz to 465 Hz

Bring your Tone Models live on stage

TONEX Pedal lets you store and play your AI Machine Modeling Tone Models live on stage. Choose from thousands of the world’s most sought-after amps, cabs, and pedals – or your own gear, modeled in minutes – then gig with them right at your feet. You’ve never experienced this level of authenticity and realism in a pedal before.

From rare one-of-a-kind vintage amps to modern rigs, TONEX Pedal makes it affordable to own the most sought-after gear in the world.

Listen to audio demos


High-end design for pristine tone

With 24-bit, 192 kHz processing, massively wide 5 Hz–24 kHz response, and 123 dB of dynamic range, TONEX Pedal ensures your instrument’s tone is as good as you’ve ever heard it even before it hits TONEX’s incredible modeling.

TONEX PEDAL
1 2 3 4 5 6 7

MODEL Encoder
Press and turn to change the Tone Model of the current preset.
Press to select amp/pedal or cab options.
Hold to access preset and global settings.

DISPLAY
Highly visible display for any stage, featuring eight 16-segment characters.
This is your main reference when moving among Tone Models, presets, editing parameters and browsing inside menus.

SUB DISPLAY
The section uses colored text to show the type of Tone Model and cab you’re running.

PRESET Encoder
Turn the PRESET encoder to browse among the 150 presets available in the pedal.
Hold to save a preset and choose its name and bank position.

PARAMETER Encoder
Each preset in TONEX Pedal has its own parameter set.
Push the PARAMETER encoder to access the sub-parameters of the selected preset.
Hold the PARAMETER encoder to access alternative controls for the 5 main knobs.

MAIN Parameter Knobs
Turn to edit the main or alternative parameters of the preset.

A, B, C FOOTSWITCHES
Press to activate or bypass a preset of the current bank.
Press A+B to select a lower down.
Press B+C to select a higher bank.
Press A+C to display the current bank.

TONEX PEDAL
  1. MODEL Encoder
    Press and turn to change the Tone Model of the current preset.
    Press to select amp/pedal or cab options.
    Hold to access preset and global settings.
  2. DISPLAY
    Highly visible display for any stage, featuring eight 16-segment characters.
    This is your main reference when moving among Tone Models, presets, editing parameters and browsing inside menus.
  3. SUB DISPLAY
    The section uses colored text to show the type of Tone Model and cab you’re running.
  4. PRESET Encoder
    Turn the PRESET encoder to browse among the 150 presets available in the pedal.
    Hold to save a preset and choose its name and bank position.
  5. PARAMETER Encoder
    Each preset in TONEX Pedal has its own parameter set.
    Push the PARAMETER encoder to access the sub-parameters of the selected preset.
    Hold the PARAMETER encoder to access alternative controls for the 5 main knobs.
  6. MAIN Parameter Knobs
    Turn to edit the main or alternative parameters of the preset.
  7. A, B, C FOOTSWITCHES
    Press to activate or bypass a preset of the current bank.
    Press A+B to select a lower down.
    Press B+C to select a higher bank.
    Press A+C to display the current bank.

INPUT
Plug your instrument here.

OUTPUTS L/R
Connect to an amplifier, stomp box, a PA system for live performance or your monitors when using TONEX Pedal as an audio interface.
Use the left output when running a mono setup.

HEADPHONES
Same as the L/R outputs. Plug your headphones here for silent monitoring.

MIDI In
Connect to external MIDI controllers to automatically change presets and parameters via control changes.

MIDI Out
Connect to external MIDI devices. Through this port TONEX Pedal can send out control changes anytime a switch is pressed or a knob is turned.

EXT. CONTROL
Hook up an external expression or single switch pedal to control any combination of parameters with a single action. Hook up a double switch pedal to easily move among banks or presets.

USB
Use this port to connect TONEX Pedal to your Mac/PC as an audio interface and for using the librarian in TONEX to organize and load presets.

POWER 9V DC
9V DC center negative 320 mA power socket.

TONEX PEDAL
  1. INPUT
    Plug your instrument here.
  2. OUTPUTS L/R
    Connect to an amplifier, stomp box, a PA system for live performance or your monitors when using TONEX Pedal as an audio interface.
    Use the left output when running a mono setup.
  3. HEADPHONES
    Same as the L/R outputs. Plug your headphones here for silent monitoring.
  4. MIDI In
    Connect to external MIDI controllers to automatically change presets and parameters via control changes.
  5. MIDI Out
    Connect to external MIDI devices. Through this port TONEX Pedal can send out control changes anytime a switch is pressed or a knob is turned.
  6. EXT. CONTROL
    Hook up an external expression or single switch pedal to control any combination of parameters with a single action. Hook up a double switch pedal to easily move among banks or presets.
  7. USB
    Use this port to connect TONEX Pedal to your Mac/PC as an audio interface and for using the librarian in TONEX to organize and load presets.
  8. POWER 9V DC
    9V DC center negative 320 mA power socket.

A complete stage rig in one pedal

TONEX’s groundbreaking technology lets you model everything from a single pedal to a full-pedal, amp-and-cab rig. TONEX Pedal goes even further, giving you the tools you need to shape your sound live on stage.

  • AMP / RIG: load up to 150 Tone Model presets to use any time. You can load any combination of pedal, amp and whole-rig models.
  • VIR CABINET: use IK’s award-winning multiple impulse response VIR™ cabinet and mic simulation to dial in the perfect cab tone for any situation.
  • IR LOADER: load any custom IR you like to explore combinations of Tone Models and your own impulse responses.
  • EFFECTS/UTILITY: TONEX Pedal includes a chromatic tuner, noise gate, parametric EQ, compressor, and 5 stereo reverbs derived from the AmpliTube X-SPACE pedal.

It’s all the tone-shaping options you need in a single pedal. And you can save up to 150 presets, organized within 50 banks of 3 preset slots each, giving you endless tones from a single portable rig.

Tour-ready design and features

Designed and crafted in Italy, TONEX Pedal features a compact chassis made from anodized aluminum that can withstand years of tour abuse.

With full MIDI in/out, you can connect high-end FX pedals like our X-GEAR line for a complete programable pedalboard or easily add TONEX Pedal to your touring rack, and use its expression pedal input to add real-time control over any parameter.


A limitless collection of tones

TONEX is more than just a pedal, it’s an ecosystem of tone, with a full range of hardware, software and apps to transport your tones everywhere, seamlessly, from your DAW and plug-ins for studio production, to your mobile device for impromptu practicing. Access your favorite Tone Models not only from the TONEX Pedal, but also from the free TONEX software and free TONEX iOS app.

TONEX Ecosystem schema


Best of all, TONEX Pedal includes 1100 Premium Tone Models plus unlimited access to free user Tone Models on ToneNET to load to the pedal for a limitless supply of sonic inspiration.

Full studio integration

TONEX Pedal tone experience goes beyond the stage. Use the included TONEX MAX software not only to model your rig, but also as a standalone or a plug-in integrated with your DAW or directly with AmpliTube 5 to enjoy the exact same tone you use live in your studio productions. And for maximum convenience, TONEX Pedal also includes a full version of AmpliTube 5 to integrate your Tone Models within the most powerful amp and effects software on the planet.

Plus TONEX Pedal also doubles as a 24 bit/44.1 kHz USB audio interface, so you don’t need any other gear to plug into your studio, choose your tone and rock out.


Easily prep for gigs

TONEX software includes a librarian letting you browse, arrange, edit and load your Tone Models and presets. With an easy drag & drop interface you can manage a massive collection of sounds in seconds.


TONEX Pedal Features

  • Advanced AI Machine Modeling™ technology for hyper realistic Tone Models
  • Play models of amps, amps + cabs, combos or pedals like: distortion, overdrive, fuzz, boost and EQ
  • Compact form factor that fits on any pedalboard
  • 50 banks with 3 preset slots each for up to 150 customizable presets
  • Practice in silence with your favorite tone using the headphone output
  • Full MIDI implementation for control over advanced rigs
  • Swap the cab with any third-party IRs or use the included advanced VIR™ cab technology with customizable microphone placement
  • Built-in USB port doubles an audio interface for recording and for preset management
  • Includes TONEX MAX software all-in-one player, modeler and librarian and AmpliTube 5 software
  • Plug-in for your favorite DAW - works as an AAX / VST / AU plug-in or in AmpliTube 5
  • Access to ToneNET for sharing, downloading and trying thousands of premium and free Tone Models.
  • Model your own rig (amp, cabinets, pedals) using the TONEX modeling software
  • Stage-ready, high-visibility display, shows the preset name, bank number or parameter’s name and value.
  • Sturdy anodized aluminum chassis designed and crafted in Italy
TONEX ONE
TONEX PEDAL
Price
...
...
Total Presets 20 150
Presets / bank 2 Presets (A/B Mode)
1 Presets (Stomp Mode)
50 Banks of 3 Presets
Bank Controls Mode Selection (A/B or Stomp) Bank up / down
Onboard IR VIR multi-IR cab emulation
Custom IR loader
VIR multi-IR cab emulation
Custom IR loader
Controls Bass / Gate
Mid / Comp
Treble / Reverb
Vol / Gain
A/B or Bypass
Gain / Reverb
Bass / Comp
Mid / Gate
Treble / Presence
Volume / Depth
Preset Select
Model Select
Parameter / ALT
A / B / C - bypass
Bank up/down
Effects Reverb
Compressor
Noise Gate
Bass / Mid / High EQ
5 x Stereo Reverbs
Compressor
Noise Gate
Bass / Mid / High EQ
Presence
Depth
Outputs 1 x 1/4" mono / stereo / headphone 2 x 1/4" (L/mono, R)
1 x 1/4" headphone
MIDI I/O Yes
External Control Yes
Assignable Colors 9
Impulse Response VIR multi-IR Cabinets
Custom IR Loader
VIR multi-IR Cabinets
Custom IR Loader
Premium Tone Models 212 1100
Included Software TONEX SE
AmpliTube 5 SE
TONEX MAX
AmpliTube 5
Audio Interface 24-bit/44.1 kHz 24-bit/44.1 kHz
Connection type USB-C USB-B
Size & Weight 48 mm / 1.89″ W
94 mm / 3.7″ D
53 mm / 2.09″ H
160 g / 0.35 lbs
176 mm / 6.92″ W
142 mm / 5.59″ D
55 mm / 2.16″ H
906 g / 1.98 lbs
Power Source 9V DC, 120 mA (not included) 9V DC, 320 mA (included)

Free included app/software

TONEX Pedal comes with the following free bonus content

Mac/PC free content

  • AmpliTube 5
    Guitar amp & FX modeling software. Includes over 180 iconic gear models.
    More info
  • AmpliTube TONEX MAX
    Standalone application and plug-in to create, play and share Tone Models. Includes 1,000 Tone Models.
    More info

How to get the free bonus content.

Bonus content is non-transferrable and has no cash value.

Specs

TONEX Pedal

  • 150 customizable presets
  • MIDI IN/OUT
  • Ultra-low noise, 24-bit/192 kHz converters.
  • 5 Hz–24 kHz frequency response
  • Up to 123 dB dynamic range
  • USB connection/ 24-bit/44.1 kHz audio interface
  • Expression pedal input to control any parameter
  • Headphone output
  • Size: 176 mm/6.92” x 142 mm/5.59” x 55 mm/2.16”
  • Weight: 906 g/ 32 oz

Package includes

  • TONEX Pedal
  • USB A-Type to USB B-Type connection cable (1.5m/4.32ft)
  • Power Supply Unit
  • 4 adhesive rubber feet

Versions

There's a TONEX Pedal for you!

TONEX Pedal is available in different versions.

TONEX Pedal

AI Machine Modeled tones live on stage.

TONEX Pedal Anniversary Limited Edition

AI Machine Modeled tones live on stage. Includes 150 additional Premium Tone Models.

TONEX Pedal + TONEX Capture Bundle

Includes Tonex Pedal and TONEX Capture.

TONEX Pedal 2-pedal Bundle

Includes 2 TONEX Pedal items. Apply discount at checkout and save $/€100.

TONEX ONE

An entire rig right in your pocket.

Manuals

TONEX Pedal Documentation and Manual

Click to view warranty information

TONEX®, AI Machine Modeling™, AmpliTube®, ToneNET™, VIR™ are trademarks or registered trademark property of IK Multimedia Production Srl. All rights reserved.
Mac, the Mac logo, the Audio Units logo, iPhone®, iPod touch®, iPad® are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Windows and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. VST is a trademark of Steinberg Media Technologies GmbH. AAX, Avid, the Avid logo, Pro Tools, and RTAS are trademarks or registered trademarks of Avid Technology, Inc. in the U.S. and other countries.
All other product names and images, trademarks and artists names are the property of their respective owners, which are in no way associated or affiliated with IK Multimedia. Product names are used solely for the purpose of identifying the specific products that were studied during IK Multimedia's sound model development and for describing certain types of tones produced with IK Multimedia's digital modeling technology. Use of these names does not imply any cooperation or endorsement.
IK Multimedia disclaims any ownership over content uploaded by users to ToneNET, including but not limited to Tone Models, Presets, and any text or symbols that users upload with their content. IK Multimedia does not endorse or represent any users of ToneNET, and any names, trademarks, or tradenames that users may upload with their content on ToneNET should not be construed as an endorsement, association, or affiliation with IK Multimedia. Users represent and warrant that they own or are licensed to use all intellectual property, including copyrights and trademarks, in any content that they upload. IK Multimedia disclaims that any content uploaded by users is non-infringing. Please see the ToneNET Terms of Use with ways that you can notify us if you believe content on ToneNET infringes your rights.

SPECIAL OFFERS8 THIS MONTH
x

We use cookies and other tracking technologies to improve your browsing experience on our site, show personalized content and targeted ads, analyze site traffic, and understand where our audience is coming from. To find out more or to opt-out, please read our Cookie Policy. To learn more, please read our Privacy Policy.

Click below to consent to our use of cookies and other tracking technologies, make granular choices or deny your consent.




Loading...
